Polyline rendering. Part 4

Overview

In the previous post I prepared the code for join styles implementation. But after geometry shader performance testing I decided to make a version with geometry shader.

Implementation

Join styles

There are three join styles:

  • bevel
  • miter
  • round

Bevel join style

The bevel join style fills the triangular notch between the two lines.

Miter join style

The miter join style extends the lines to meet at an angle.

Round join style

The round join style fills a circular arc between the two lines. This style has been implemented earlier.

Miter point calculation

To calculate miter point we need to know a direction before the join and a direction after.

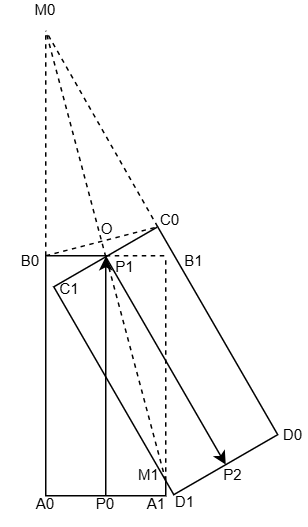

In the provided figure we have join point $P_1$, previous point $P_0$ and next point $P_2$. Miter point $M_0$ has it’s opposite point $M_1$ of quads intersection.

  • Points $A_0$ and $A_1$ are derived from first segment point $P_0$.
  • Points $B_0$ and $B_1$ are derived from first segment point $P_1$.
  • Points $C_0$ and $C_1$ are derived from second segment point $P_1$.
  • Points $D_0$ and $D_1$ are derived from second segment point $P_2$.

Let’s define segments directions:

\[\begin{cases} d_1 = P_1 - P_0 \\ d_2 = P_2 - P_1 \end{cases} \tag{1}\label{1}\]

and angles:

\[\begin{cases} \alpha = \widehat{B_0 M_0 C_0} \\ \beta = \frac \alpha 2 \end{cases} \tag{2}\label{2}\]

Angle between directions:

\[\cos{\alpha} = - \vec{d_1} \cdot \vec{d_2}\]

For quad halfwidth $w$ distance to miter point $l$:

\[l = B_0 M_0 = \frac {w} {\tan{\beta}}\] \[l = w \frac {\cos{\beta}} {\sin{\beta}}\] \[l = w \sqrt{\frac{1+\cos{\alpha}}{1-\cos{\alpha}}}\]

And $M_0$ will be computed as:

\[M_0 = B_0 + \vec{d_1} l\]

Restrictions

Miter point can’t be calculated for angle $\alpha$ close to zero. Also we should define miter limit $l_{\max}$. So there will be following restrictions:

\[\begin{cases} l \le l_{\max} \\ \alpha \ge \alpha_\min \end{cases} \tag{3}\label{3}\]

Code

Application code

Data creation

bool PolylineDrawer::CreateData(const PointArray& points)
{
	uint32_t num_points = static_cast<uint32_t>(points.size());
	if (num_points < 2) return false;

	// We add one point before and one point after to have access to previous and next segments.
	num_vertices_ = num_points + 2;
	vertices_array_ = new uint8_t[num_vertices_ * sizeof(Vertex)];
	Vertex* vertices = reinterpret_cast<Vertex*>(vertices_array_);

	// Position
	uint32_t n = 0;
	// First point is extrapolated one from the first segment.
	Point first_point;
	first_point[0] = points[0][0] + (points[0][0] - points[1][0]);
	first_point[1] = points[0][1] + (points[0][1] - points[1][1]);
	vertices[n++].position = first_point;
	for (uint32_t i = 0; i < num_points; ++i)
	{
		const Point& point = points[i];
		vertices[n++].position = {point[0], point[1]};
	}
	// The last point is extrapolated one from the last segment.
	Point last_point;
	last_point[0] = points[num_points-1][0] + (points[num_points-1][0] - points[num_points-2][0]);
	last_point[1] = points[num_points-1][1] + (points[num_points-1][1] - points[num_points-2][1]);
	vertices[n++].position = last_point;

	// Point type
	n = 0;
	vertices[n++].point_type = 0.0f; // value here doesn't matter
	for (uint32_t i = 0; i < num_points; ++i)
	{
		vertices[n++].point_type = (i == 0) ? -1.0f : (i == num_points - 1) ? 1.0f : 0.0f;
	}
	vertices[n++].point_type = 0.0f; // value here doesn't matter

	return true;
}

Attributes layout

	const GLsizei stride = sizeof(Vertex);
	const uint8_t* base = nullptr;
	const uint8_t* prev_offset = base;
	const uint8_t* curr_offset = prev_offset + stride;
	const uint8_t* next_offset = curr_offset + stride;
	const uint8_t* point_type_curr_offset = curr_offset + sizeof(Point);
	const uint8_t* point_type_next_offset = point_type_curr_offset + stride;
	glVertexAttribPointer(0, 2, GL_FLOAT, GL_FALSE, stride, prev_offset); // vec2 a_position_prev
	glEnableVertexAttribArray(0);
	glVertexAttribPointer(1, 2, GL_FLOAT, GL_FALSE, stride, curr_offset); // vec2 a_position_curr
	glEnableVertexAttribArray(1);
	glVertexAttribPointer(2, 2, GL_FLOAT, GL_FALSE, stride, next_offset); // vec2 a_position_next
	glEnableVertexAttribArray(2);
	glVertexAttribPointer(3, 1, GL_FLOAT, GL_FALSE, stride, point_type_curr_offset); // float a_point_type_curr
	glEnableVertexAttribArray(3);
	glVertexAttribPointer(4, 1, GL_FLOAT, GL_FALSE, stride, point_type_next_offset); // float a_point_type_next
	glEnableVertexAttribArray(4);

Rendering

void PolylineDrawer::Render()
{
	ActivateShader();

	glBindVertexArray(vertex_array_object_);
	glDrawArrays(GL_POINTS, 0, num_vertices_ - 3);
	glBindVertexArray(0);

	DeactivateShader();
}

Shader code

Vertex shader

#version 330 core

layout (location = 0) in vec2 a_position_prev;
layout (location = 1) in vec2 a_position_curr;
layout (location = 2) in vec2 a_position_next;
layout (location = 3) in float a_point_type_curr;
layout (location = 4) in float a_point_type_next;

out VS_OUT {
	vec4 position_prev;
	vec4 position_next;
	float point_type_curr;
	float point_type_next;
} vs_out;

void main()
{
	gl_Position = vec4(a_position_curr, 0.0, 1.0);
	vs_out.position_prev = vec4(a_position_prev, 0.0, 1.0);
	vs_out.position_next = vec4(a_position_next, 0.0, 1.0);
	vs_out.point_type_curr = a_point_type_curr;
	vs_out.point_type_next = a_point_type_next;
}

Geometry shader

#version 330 core

layout (points) in;
layout (triangle_strip, max_vertices = 8) out;

uniform vec4 u_viewport;
uniform float u_pixel_width;
uniform float u_miter_limit;
uniform int u_cap_style; // flat, square, round
uniform int u_join_style; // bevel, miter, round

in VS_OUT {
	vec4 position_prev;
	vec4 position_next;
	float point_type_curr;
	float point_type_next;
} gs_in[];

noperspective out vec2 v_position;
noperspective out float v_point_type;
flat out float v_length;
flat out float v_radius;

vec2 project(vec4 clip)
{
    vec3 ndc = clip.xyz / clip.w;
    vec2 screen = (ndc.xy * 0.5 + vec2(0.5)) * u_viewport.zw + u_viewport.xy;
    return screen;
}
vec4 unproject(vec2 screen, float z, float w)
{
    vec2 ndc = ((screen - u_viewport.xy) / u_viewport.zw - vec2(0.5)) * 2.0;
    return vec4(ndc.x * w, ndc.y * w, z, w);
}

// We draw quad from current point to next one
void build_quad(vec4 prev, vec4 curr, vec4 next)
{
	vec2 screen_prev = project(prev);
	vec2 screen_curr = project(curr);
	vec2 screen_next = project(next);

	vec2 d1 = normalize(screen_curr - screen_prev);
	vec2 n1 = vec2(-d1.y, d1.x);
	vec2 d2 = screen_next - screen_curr;
	float segment_length = length(d2);
	d2 /= segment_length; // normalize
	vec2 n2 = vec2(-d2.y, d2.x);

	float w = u_pixel_width * 0.5;
	float point_type_curr = gs_in[0].point_type_curr;
	float point_type_next = gs_in[0].point_type_next;

	if (abs(point_type_curr) < 0.5) // current point is join, not start point
	{
		if (u_join_style == 0) // bevel join
		{
			// Bevel triangle
			float signed_z = w * sign(d1.x*d2.y - d2.x*d1.y);
			gl_Position = unproject(screen_curr - n1 * signed_z, curr.z, curr.w);
			v_position = vec2(0.0);
			v_point_type = 0.0;
			v_length = segment_length;
			v_radius = w;
			EmitVertex();
			gl_Position = unproject(screen_curr - n2 * signed_z, curr.z, curr.w);
			v_position = vec2(0.0);
			v_point_type = 0.0;
			v_length = segment_length;
			v_radius = w;
			EmitVertex();
			gl_Position = curr;
			v_position = vec2(0.0);
			v_point_type = 0.0;
			v_length = segment_length;
			v_radius = w;
			EmitVertex();
			EndPrimitive();
		}
		else if (u_join_style == 1) // miter join
		{
			// Miter quad
			float cos_a = dot(-d1, d2);
			float miter_limit = u_miter_limit * w;
			float miter_distance = w * sqrt((1.0 + cos_a) / (1.0 - cos_a));
			if (cos_a < 0.98 && miter_distance < miter_limit)
			{
				float signed_z = w * sign(d1.x*d2.y - d2.x*d1.y);
				vec2 first_point  = screen_curr - n1 * signed_z;
				vec2 second_point = screen_curr - n2 * signed_z;
				vec2 miter_point  = first_point + d1 * miter_distance;
				gl_Position = unproject(first_point, curr.z, curr.w);
				v_position = vec2(0.0);
				v_point_type = 0.0;
				v_length = segment_length;
				v_radius = w;
				EmitVertex();
				gl_Position = curr;
				v_position = vec2(0.0);
				v_point_type = 0.0;
				v_length = segment_length;
				v_radius = w;
				EmitVertex();
				gl_Position = unproject(miter_point, curr.z, curr.w);
				v_position = vec2(0.0);
				v_point_type = 0.0;
				v_length = segment_length;
				v_radius = w;
				EmitVertex();
				gl_Position = unproject(second_point, curr.z, curr.w);
				v_position = vec2(0.0);
				v_point_type = 0.0;
				v_length = segment_length;
				v_radius = w;
				EmitVertex();
				EndPrimitive();
			}
		}
		else // round join
		{
			vec2 p1 = screen_curr + n2 * w;
			vec2 p2 = p1 - d2 * w;
			vec2 p3 = screen_curr - n2 * w;
			vec2 p4 = p3 - d2 * w;

			gl_Position = unproject(p1, curr.z, curr.w);
			v_position = vec2(0.0, w);
			v_point_type = point_type_curr;
			v_length = segment_length;
			v_radius = w;
			EmitVertex();
			gl_Position = unproject(p2, curr.z, curr.w);
			v_position = vec2(-w, w);
			v_point_type = point_type_curr;
			v_length = segment_length;
			v_radius = w;
			EmitVertex();
			gl_Position = unproject(p3, curr.z, curr.w);
			v_position = vec2(0.0, -w);
			v_point_type = point_type_curr;
			v_length = segment_length;
			v_radius = w;
			EmitVertex();
			gl_Position = unproject(p4, curr.z, curr.w);
			v_position = vec2(-w, -w);
			v_point_type = point_type_curr;
			v_length = segment_length;
			v_radius = w;
			EmitVertex();
			EndPrimitive();
		}
	}

	vec2 curr_offset_x = vec2(0.0);
	vec2 next_offset_x = vec2(0.0);
	vec2 offset_y = n2 * w;
	float cap_offset_curr = 0.0;
	float cap_offset_next = 0.0;
	if (u_cap_style != 0) // not flat cap (square cap or round cap)
	{
		cap_offset_curr = w * point_type_curr;
		cap_offset_next = w * point_type_next;
		curr_offset_x = d2 * cap_offset_curr;
		next_offset_x = d2 * cap_offset_next;
	}

	// Quad
	gl_Position = unproject(screen_curr + offset_y + curr_offset_x, curr.z, curr.w); // left top
	v_position = vec2(cap_offset_curr, w);
	v_point_type = point_type_curr;
	v_length = segment_length;
	v_radius = w;
	EmitVertex();
	gl_Position = unproject(screen_curr - offset_y + curr_offset_x, curr.z, curr.w); // left bottom
	v_position = vec2(cap_offset_curr, -w);
	v_point_type = point_type_curr;
	v_length = segment_length;
	v_radius = w;
	EmitVertex();
	gl_Position = unproject(screen_next + offset_y + next_offset_x, next.z, next.w); // right top
	v_position = vec2(segment_length + cap_offset_next, w);
	v_point_type = point_type_next;
	v_length = segment_length;
	v_radius = w;
	EmitVertex();
	gl_Position = unproject(screen_next - offset_y + next_offset_x, next.z, next.w); // right bottom
	v_position = vec2(segment_length + cap_offset_next, -w);
	v_point_type = point_type_next;
	v_length = segment_length;
	v_radius = w;
	EmitVertex();
	EndPrimitive();
}

void main()
{
	build_quad(gs_in[0].position_prev, gl_in[0].gl_Position, gs_in[0].position_next);
}

Fragment shader

#version 330 core

uniform int u_cap_style; // flat, square, round
uniform int u_join_style; // bevel, miter, round

out vec4 color;

noperspective in vec2 v_position;
noperspective in float v_point_type;
flat in float v_length;
flat in float v_radius;

void main()
{
	vec2 position = v_position;
	float point_type = v_point_type;
	float len = v_length;
	float radius = v_radius;

	bool is_join = abs(point_type) < 0.5;
	bool need_discard = !is_join && u_cap_style == 2 || is_join && u_join_style == 2;

	if (need_discard && position.x < 0.0)
	{
		float dist = length(position); // = distance(position, vec2(0.0))
		if (dist > radius)
			discard;
	}
	else if (need_discard && position.x > len)
	{
		float dist = length(vec2(position.x - len, position.y)); // = distance(position, vec2(len, 0.0))
		if (dist > radius)
			discard;
	}
	color = vec4(1.0, 0.0, 0.0, 0.0);
}

Conclusion

We achieved polyline rendering with different joins. In the next post we will cover polyline rendering with dash pattern.
